5 TPH Complete Pellet Plant
Large-scale industrial facility for export and high-volume markets
Power
300-350 kW
Floor Area
2000-2500 sq.ft
Equipment
14 units
30–45 days
Commissioning time
6–10 persons
Operators needed
~5,000 kg
Output per 20hr shift
2 years
Equipment warranty
Plant & Equipment Images
5 TPH industrial plant — high-volume continuous production

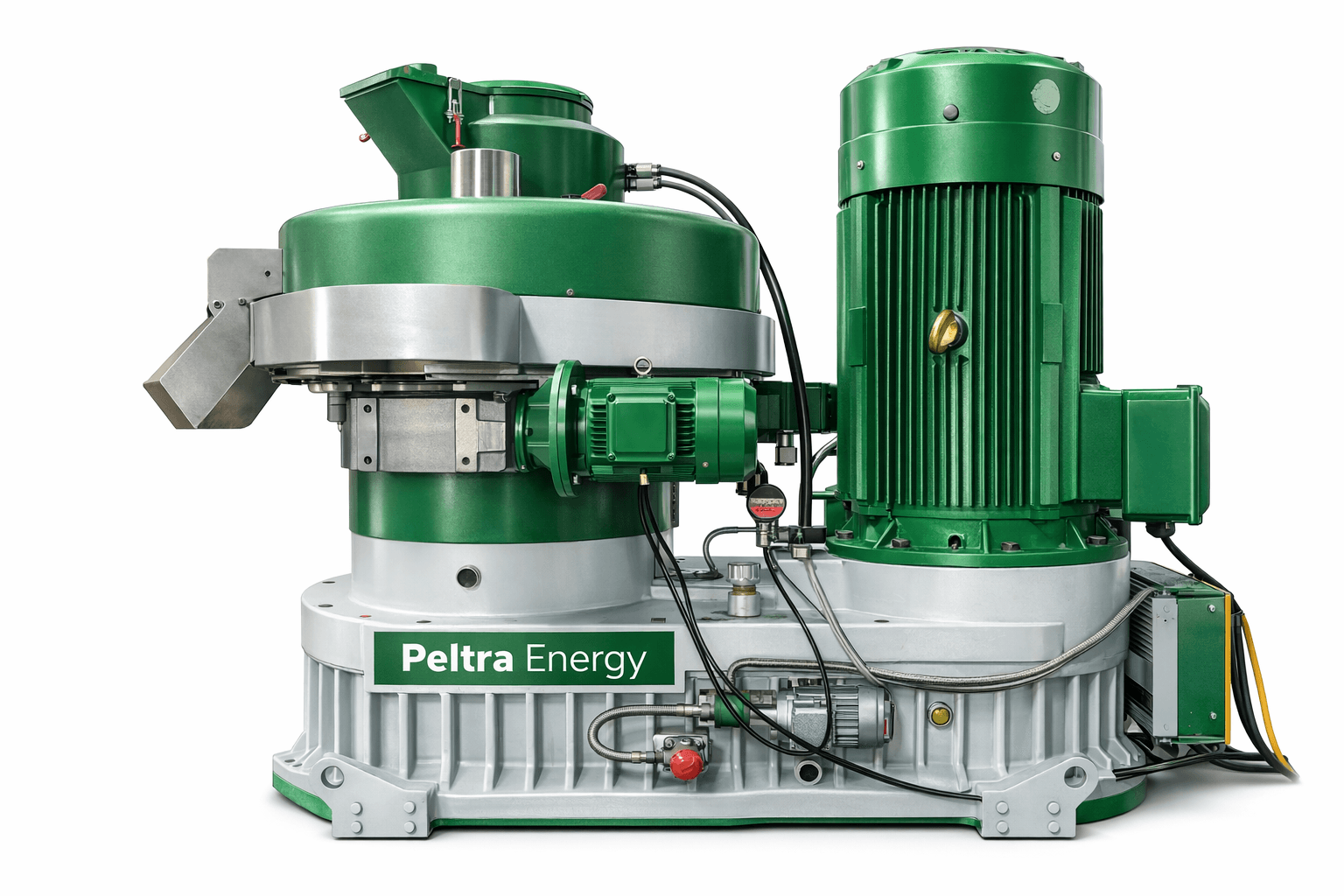

Large-format ring die mill for sustained high-throughput

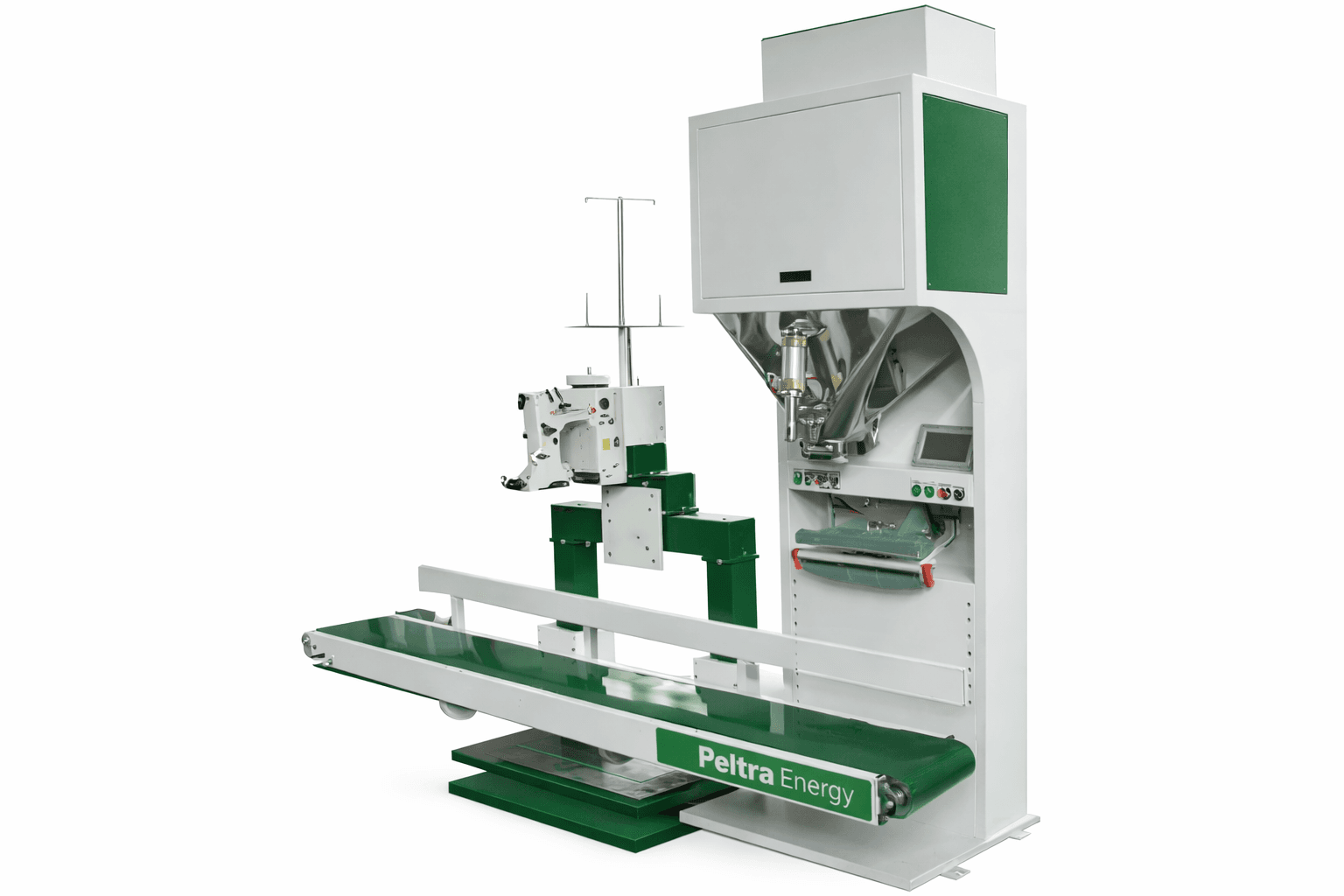

High-speed automatic packing and conveying system
Overview
About This Plant
The 5 TPH Complete Pellet Plant is our largest pre-configured production line, engineered for industrial-scale biomass processing for producers supplying high-volume industrial consumers, power utilities, or international export markets where consistent quality, output reliability, and certifiable pellet specifications are required.
This plant operates as a continuous production facility with automated controls throughout the processing chain. It is suitable for running three-shift operations with significant annual production capacity depending on raw material availability and operational efficiency.
The 5 TPH line is supplied with a complete civil layout plan, electrical single-line diagram, and process flow documentation. Our commissioning team is on-site for the full duration of trial runs and initial production batches.
Best suited for
How it works
Production Process
Raw Material Handling
Automated bulk receiving, weighing, and conveyor feeding systems handle large daily biomass volumes with minimal manual handling.
Primary Processing
High-capacity hammer mill with variable-speed drive processes diverse biomass types. Magnetic separation removes tramp metal before the mill.
Industrial Drying
Multi-pass rotary drum dryer with automated PLC control maintains precise moisture targets regardless of incoming material variability.
High-Capacity Pelletisation
Large-format horizontal ring die pellet mills ensure sustained throughput. Die temperature monitoring and automatic lubrication included.
Finishing & Dispatch
Industrial cooling, multi-deck screening, and high-speed automatic packing lines prepare finished product for bulk or bagged dispatch.
What's included
Key Features
Included Equipment(14 items)
