500 kg/hr Complete Pellet Plant
Mid-scale production for growing biomass businesses
Power
75-85 kW
Floor Area
400-500 sq.ft
Equipment
9 units
10–15 days
Commissioning time
3–4 persons
Operators needed
~8,000 kg
Output per 2 shifts
2 years
Equipment warranty
Plant & Equipment Images
500 kg/hr plant — ring die technology for higher efficiency

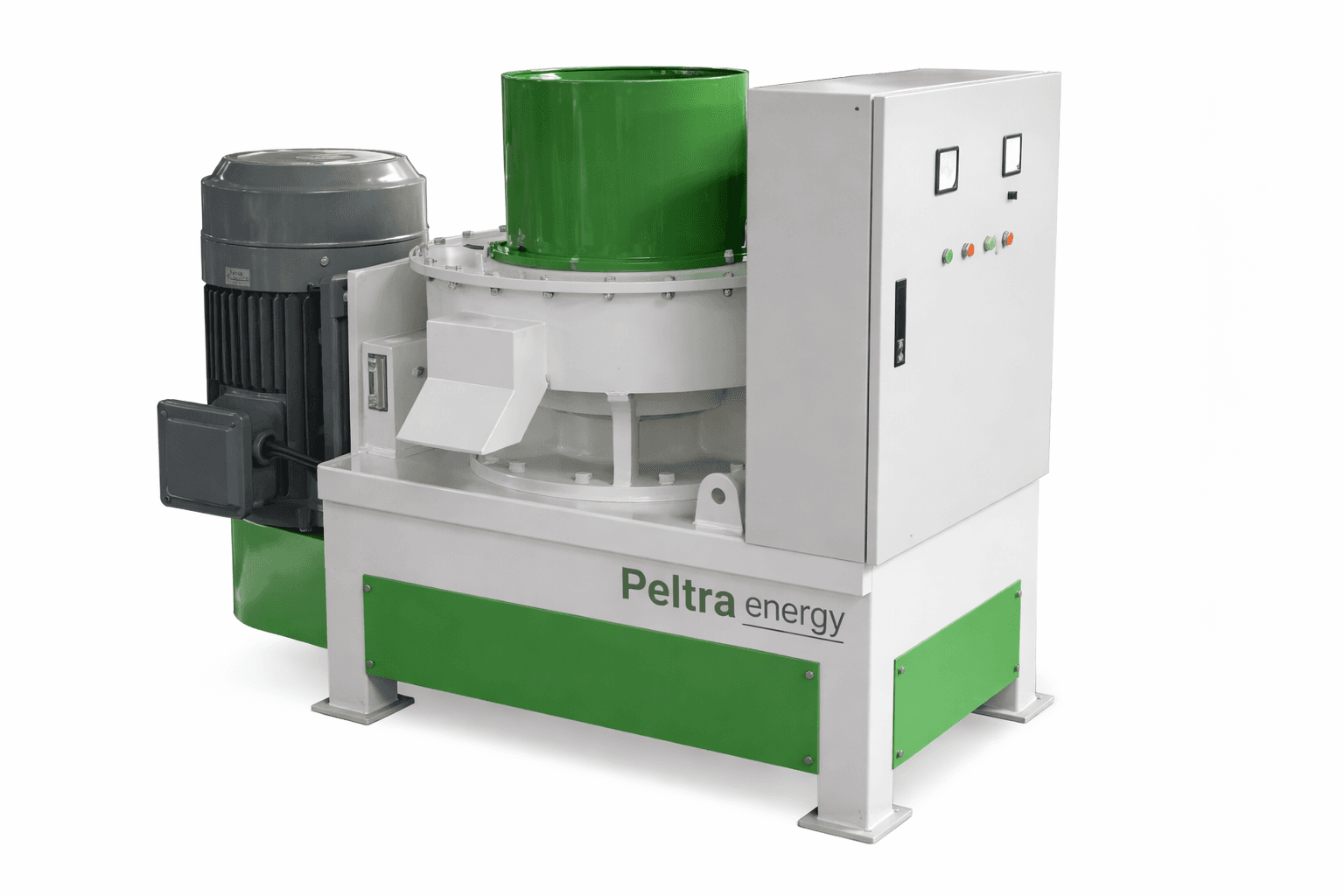

Vertical ring die pellet mill — commercial grade performance

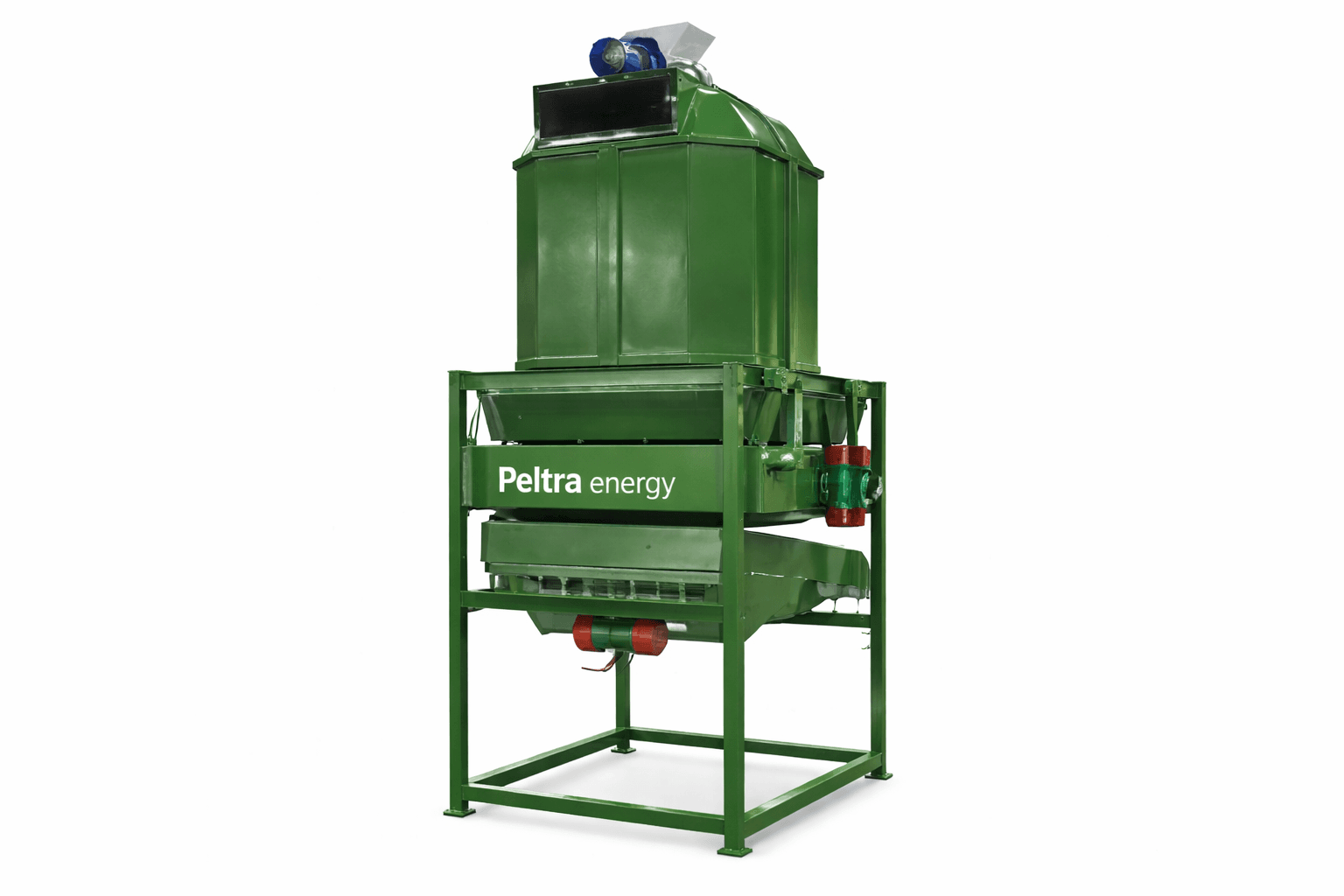

Counter-flow cooler for pellet hardening
Overview
About This Plant
The 500 kg/hr Complete Pellet Plant bridges the gap between entry-level and industrial-scale production. It is suited for businesses that have validated their market, have a reliable biomass supply chain, and are ready to increase throughput.
This plant uses a ring die pellet mill — a step up from flat die technology — which offers higher efficiency, better pellet density, and lower maintenance downtime during extended production runs. The ring die configuration is preferred for commercial operations processing mixed or harder biomass feedstocks.
The 500 kg/hr line is engineered for two-shift operation, allowing you to produce up to 8,000 kg per day with adequate raw material supply.
Best suited for
How it works
Production Process
Raw Material Preparation
Wood waste or agro-residue is crushed in the hammer mill and conditioned for uniform particle distribution.
Drying
The industrial rotary drum dryer processes material at higher throughput, maintaining consistent moisture across the batch.
Pelletisation
The vertical ring die pellet mill produces dense, high-quality pellets suitable for industrial boilers and export specifications.
Cooling
Counter-flow cooler rapidly reduces pellet temperature while preserving surface hardness and reducing moisture to under 10%.
Screening & Packing
Vibrating screener removes fines, and the automatic packing line bags finished product for storage or dispatch.
What's included
Key Features
Included Equipment(9 items)
