2 TPH Complete Pellet Plant
Industrial-scale output for serious pellet production businesses
Power
150-180 kW
Floor Area
1000-1200 sq.ft
Equipment
13 units
20–30 days
Commissioning time
4–6 persons
Operators needed
~2,000 kg
Output per 16hr shift
2 years
Equipment warranty
Plant & Equipment Images
2 TPH industrial production line
Horizontal ring die pellet mill — continuous operation design

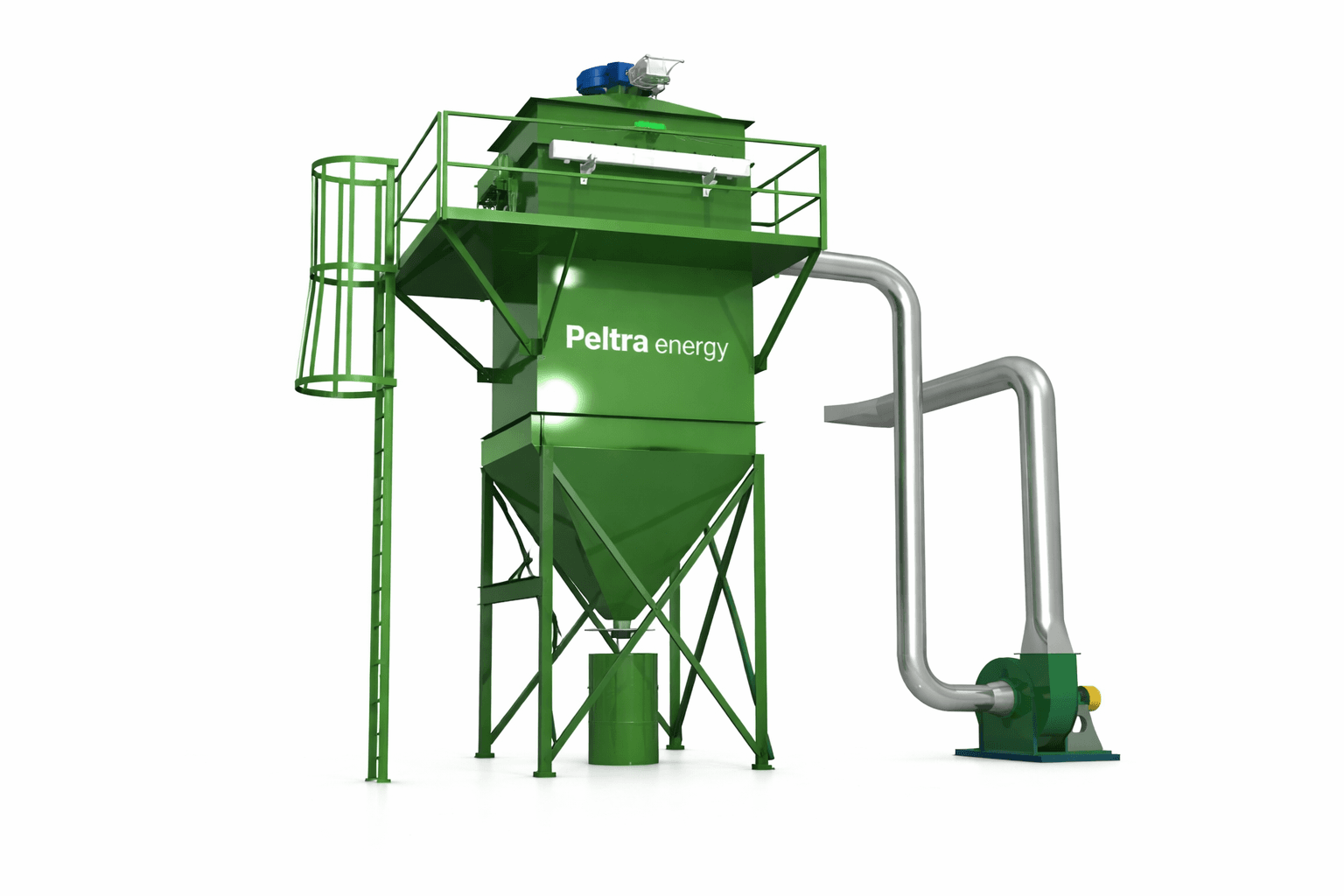

Integrated dust collection across all processing stages
Overview
About This Plant
The 2 TPH Complete Pellet Plant is a fully automated industrial production line for businesses operating at commercial scale — supplying industrial consumers, power plants, or export markets where consistent quality and volume are non-negotiable.
At this capacity, the plant uses a horizontal ring die pellet mill — the preferred choice for high-volume biomass processing. The entire line is designed for continuous 16–20 hour daily operation with minimal manual intervention, supported by automated conveying, feeding, and packing systems.
This setup includes a comprehensive dust collection system across all processing stages, making it compliant with standard industrial hygiene requirements. Civil work guidelines and electrical layout drawings are provided as part of the supply package.
Best suited for
How it works
Production Process
Bulk Material Intake
Raw biomass is received, weighed, and fed into the processing line via belt conveyor systems with automated speed control.
Size Reduction
Industrial hammer mill crushes material to uniform particle size. Multiple hammer configurations available depending on biomass type.
Drying
Large-capacity rotary drum dryer with automated temperature and moisture monitoring ensures consistent input to the pellet mill.
Pelletisation
Horizontal ring die pellet mill delivers high-density pellets at continuous throughput. Die and roller assemblies are designed for extended life.
Post-Processing
Integrated cooling, screening, and conveying line feeds directly into automatic packing with batch counting and bag sealing.
What's included
Key Features
Included Equipment(13 items)
